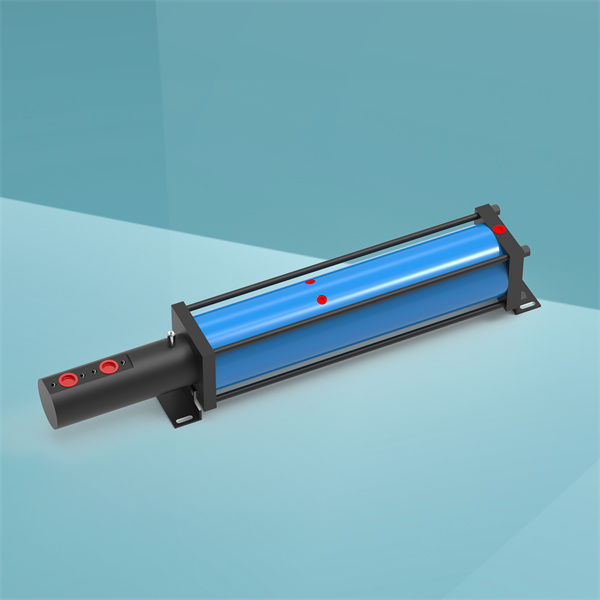

Suzhou Simitch Machinery Co., Ltd - MPS-HMPS series driven supercharger

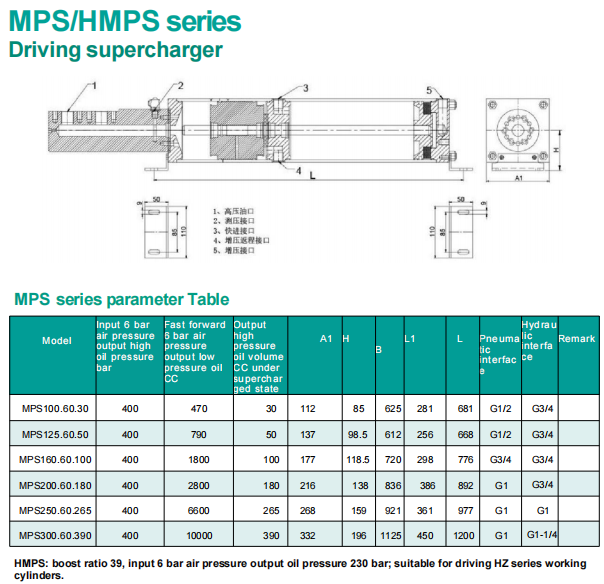

Model	Input 6 bar air pressure and output high oil pressure bar	Fast forward to 6 bar air pressure output, low-pressure oil volume CC	Output high-pressure oil quantity CC under boosted state	A1	H	B	L1	L	Pneumatic interface	Oil pressure interface
MPS100.60.30	400	470	30	112	85	625	281	681	G1/2	G3/4
MPS125.60.50	400	790	50	137	98.5	612	256	668	G1/2	G3/4
MPS160.60. 100	400	1800	100	177	118.5	720	298	776	G3/4	G3/4
MPS200.60. 180	400	2800	180	216	138	836	386	892	G1	G3/4
MPS250.60.265	400	6600	265	268	159	921	361	977	G1	G1
MPS300.60.390	400	10000	390	332	196	1125	450	1200	G1	G1-1/4

MPS: Boost ratio 69, input pressure of 6 bar, output pressure of 400 bar; Suitable for driving AT series working cylinders.

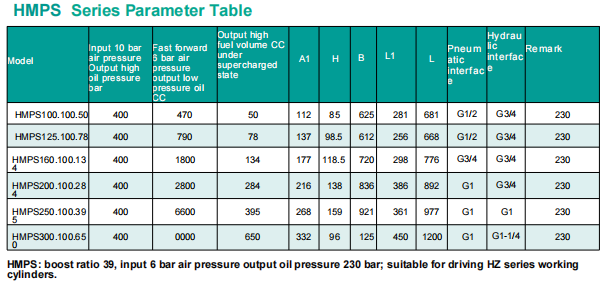

Model	Enter 10 bar air pressure	Fast forward to 6 bar air pressure	Under boosted state	A1	H	B	L1	L	Pneumatic interface	Oil pressure interface	Remark
	Output high oil pressure bar	Output low-pressure oil volume CC	Output high-pressure oil volume CC								Enter 6 bar air pressure
											Output high oil pressure bar
HMPS100.100.50	400	470	50	112	85	625	281	681	G1/2	G3/4	230
HMPS125.100.78	400	790	78	137	98.5	612	256	668	G1/2	G3/4	230
HMPS160.100.13 4	400	1800	134	177	118.5	720	298	776	G3/4	G3/4	230
HMPS200.100.28 4	400	2800	284	216	138	836	386	892	G1	G3/4	230
HMPS250.100.39	400	6600	395	268	159	921	361	977	G1	G1	230
HMPS300.100.65	400	0	650	332	96	125	450	1200	G1	G1-1/4	230

HMPS: Boost ratio 39, input pressure of 6 bar, output pressure of 230 bar; Suitable for driving HZ series working cylinders.
