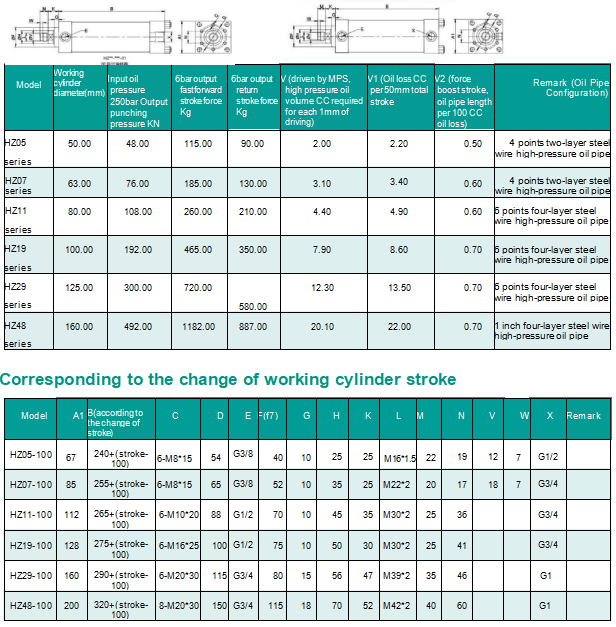

| Model | Working cylinder | Input oil pressure 250 bar | 6 bar output fast forward | 6 bar output return | V (driven by MPS,high pressure oil volume CC required for each 1mm of driving) | V1 (CC loss per 100 fuel volume per 50mm total line degree) | V2 (Power stroke, Long range oil loss in tubing CC) | Remark (Oil Pipe Configuration) |
| diameter(mm) | Output punching pressure KN | stroke force Kg | stroke force Kg | |||||
| HZ05 series | 50 | 48 | 115 | 90 | 2 | 2.2 | 0.5 | 4 points two-layer steel wire high-pressure oil pipe |
| HZ07 series | 63 | 76 | 185 | 130 | 3.1 | 3.4 | 0.6 | 4 points two-layer steel wire high-pressure oil pipe |
| HZ11 series | 80 | 108 | 260 | 210 | 4.4 | 4.9 | 0.6 | 6 points four-layer steel wire high-pressure oil pipe |
| HZ19 series | 100 | 192 | 465 | 350 | 7.9 | 8.6 | 0.7 | 6 points four-layer steel wire high-pressure oil pipe |
| HZ29 series | 125 | 300 | 720 | 580 | 12.3 | 13.5 | 0.7 | 6 points four-layer steel wire high-pressure oil pipe |
| HZ48 series | 160 | 492 | 1182 | 887 | 20.1 | 22 | 0.7 | 1 inch four-layer steel wire high-pressure oil pipe |
