Powerpackage

Pressure range of 2-2000 kN, short acting pressure stroke, optimal choice
Independently integrated power unit, with minimal space output and huge impulse force, the advantages of gas-liquid boosting technology can be fully utilized.
SIMITCH adheres to German technology, digests and absorbs the core technology of gas-liquid power conversion, and knows how to effectively combine the advantages of compressed air and hydraulic oil.
The SIMITCH series of gas-liquid booster cylinders can provide up to 2000kN of thrust force.

Technical Data

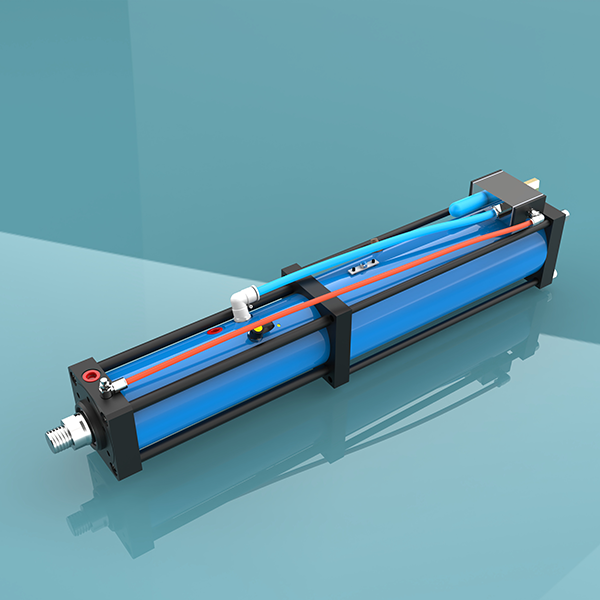

BS series pneumatic hydraulic cylinder

Model	6 bar input pressure (KN)	6 bar input quick strokeforce (kg)	6 bar input return stroke force (kg)	Boost ratio	6 bar input max. Oil pressure (bar)
BS01 -series	11	95	105	62	345
BS02-series	17	50	170	64	350
BS04-series	35	240	260	69	380
BS08-series	72	350	370	61	340
BS15-series	135	500	700	64	350
BS20-series	200	580	780	64	350
BS30-series	276	730	1000	64	350
BS50-series	476	1150	1700	61	340
BS75-series	736	2355	3780	51	280
BS100-series	970	2355	3780	69	380

Learn more Request a Quote

E-mail

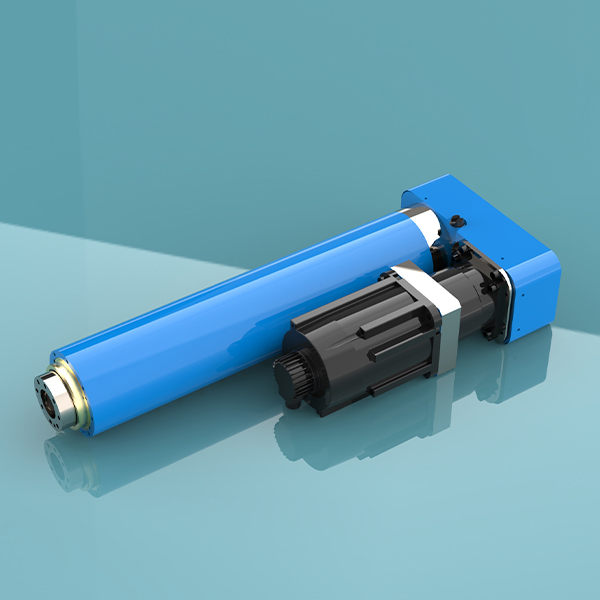

Servo press fit system

model	SMT-BP-10-300	SMT-BP-30-300	SMT-BP-60-300	SMT-BP-100-300	SMT-BP-150-300	SMT-BP-200-300
Max Force (KN)	10	30	60	100	150	200
Max Stroke (mm)	300	300	300	300	300	300
Max Speed (mm/s)	300	200	200	160	110	140
Repeat Position Accuracy (mm)	0.01	0.01	0.01	0.01	0.01	0.01
Force Measurement Accuracy (%)	1	1	1	1	1	1
Rated Voltage (V)	380	380	380	380	380	380
Service Life	>5 million	>5 million	>5 million	>5 million	>5 million	>5 million
Ambient Temperature	0-40°C	0-40°C	0-40°C	0-40°C	0-40°C	0-40°C
Noise (db)	<75	<75	<75	<75	<75	<75
Rated Power (KW)	1.5	1.5	3	4.4	4.4	7.5

Learn more Request a Quote

E-mail

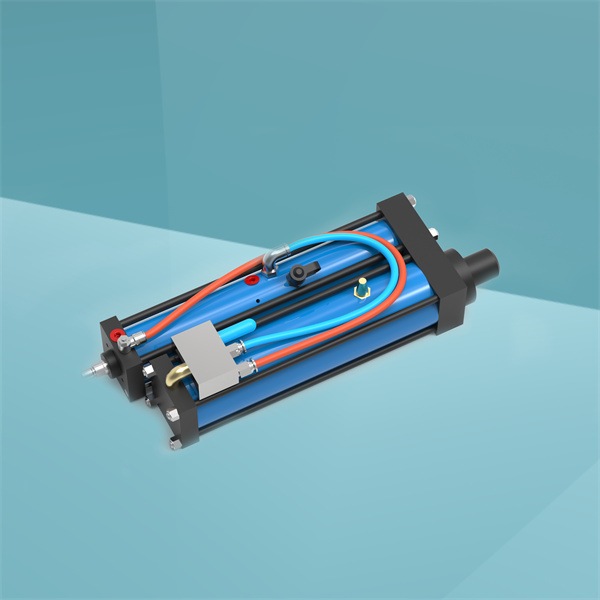

BT series pneumatic hydraulic cylinder

Learn more Request a Quote
E-mail

whatsapp

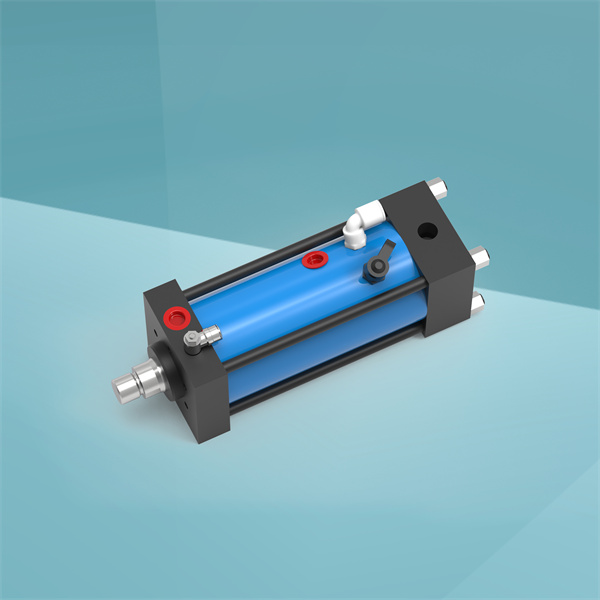

AT series split -type working cylinder

Model	Input oil pressure 400 bar	6 bar output quick stroke	6 bar output return	V (driven by MPS, high pressure oil volume CC required for each 1mm of driving)	V1 (Oil loss CC per 50mm total stroke)	V2 (force boost stroke , oil pipe length per 100 CC oil loss)	Remark (Oil Pipe Configuration)
	Output punching pressure KN	force Kg	force Kg
AT01 series	13	95	105	0.31	0.55	0.4	3 point two-layer steel wire high-pressure oil pipe
AT02 series	21	150	170	0.49	0.7	0.7	3 point two-layer steel wire high-pressure oil pipe
AS04 series	4200	240	260	1.02	1.65	0.7	4 point four-layer steel wire high-pressure oil pipe
AT08 series	81	350	370	1.95	3.5	0.9	4 point four-layer steel wire high-pressure oil pipe
AT15 series	158	500	700	3.85	5	2	4 point four-layer steel wire high-pressure oil pipe
AT20 series	200	580	780	5.67	1000	2	6point four-layer steel wire high-pressure oil pipe
AT30 series	320	730	1000	7.85	15.5	2	6 point four-layer steel wire high-pressure oil pipe
AT50 series	498	1150	1700	12.27	18.5	3.1	1 inch four-layer steel wire high pressure oil pipe
AT100 series	1030	2355	3780	25.45	36.5	3.1	1 inch four-layer steel wire high pressure oil pipe

Learn more Request a Quote

E-mail

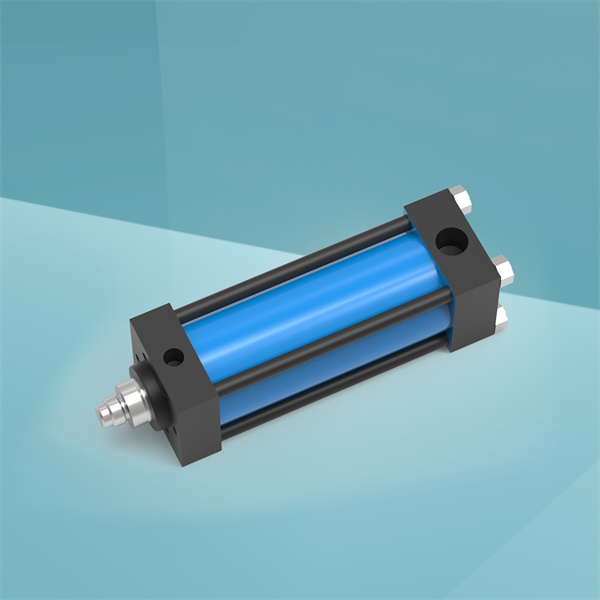

HZ series split working cylinder

Model	Working cylinder	Input oil pressure 250 bar	6 bar output fast forward	6 bar output return	V (driven by MPS,high pressure oil volume CC required for each 1mm of driving)	V1 (CC loss per 100 fuel volume per 50mm total line degree)	V2 (Power stroke, Long range oil loss in tubing CC)	Remark (Oil Pipe Configuration)
	diameter(mm)	Output punching pressure KN	stroke force Kg	stroke force Kg
HZ05 series	50	48	115	90	2	2.2	0.5	4 points two-layer steel wire high-pressure oil pipe
HZ07 series	63	76	185	130	3.1	3.4	0.6	4 points two-layer steel wire high-pressure oil pipe
HZ11 series	80	108	260	210	4.4	4.9	0.6	6 points four-layer steel wire high-pressure oil pipe
HZ19 series	100	192	465	350	7.9	8.6	0.7	6 points four-layer steel wire high-pressure oil pipe
HZ29 series	125	300	720	580	12.3	13.5	0.7	6 points four-layer steel wire high-pressure oil pipe
HZ48 series	160	492	1182	887	20.1	22	0.7	1 inch four-layer steel wire high-pressure oil pipe

Learn more Request a Quote

E-mail

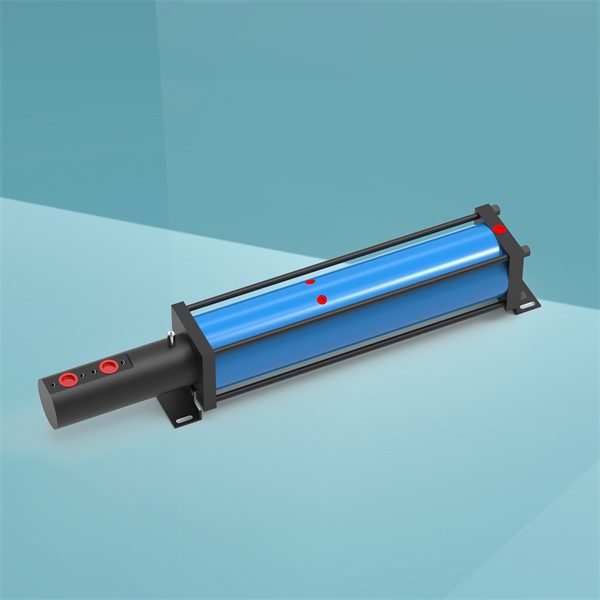

MPS-HMPS series driven supercharger
