BT series pneumatic hydraulic cylinder

The pneumatic hydraulic cylinder is a complete driving system, and its different structural forms and specially designed accessories make it suitable for different situations.

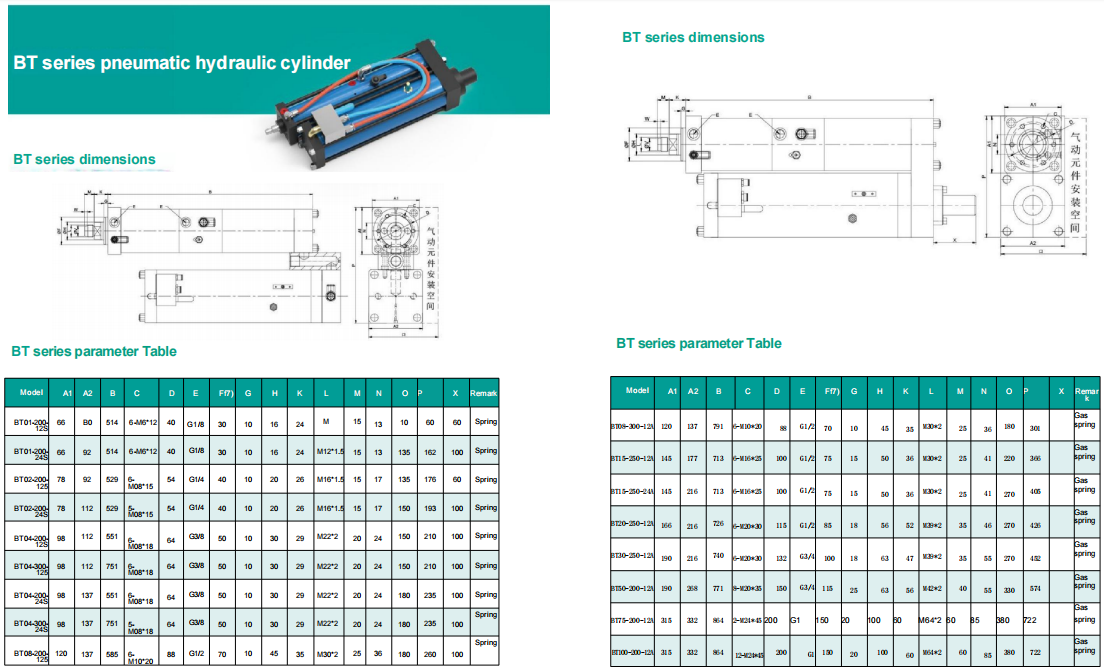

BT series pneumatic hydraulic cylinder

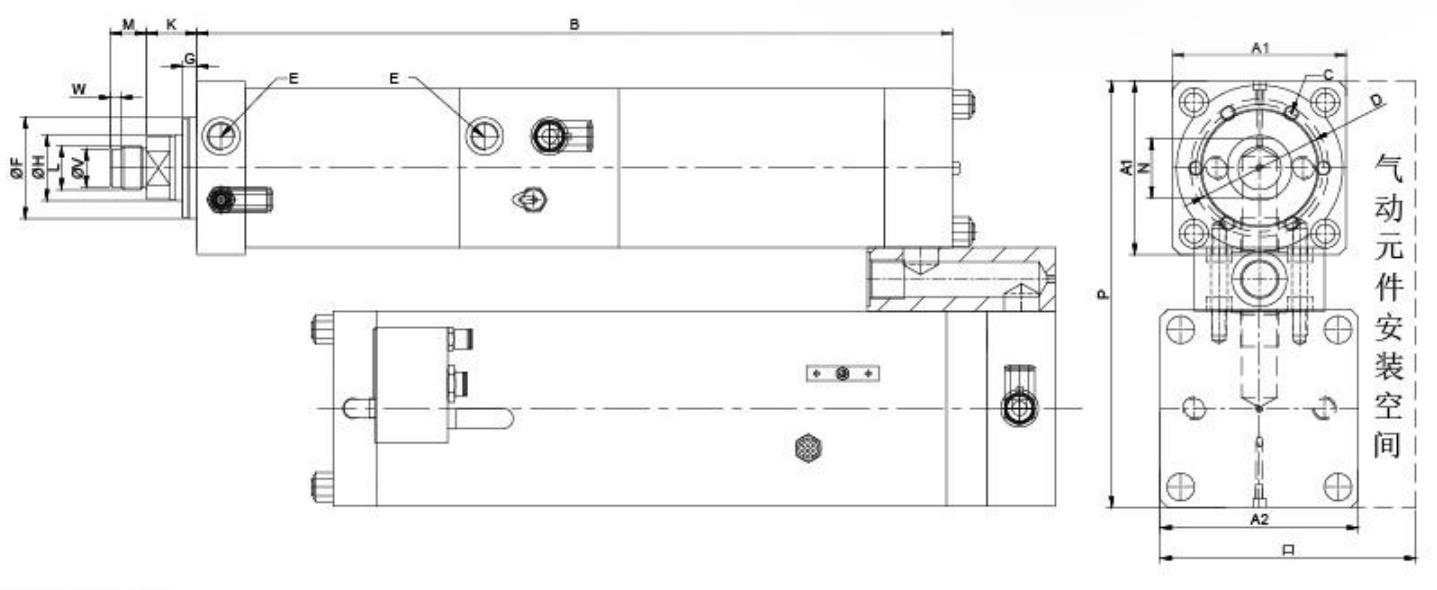

Technical parameter


Model	A1	A2	B	C	D	E	F(f7)	G	H	K	L	M	N	O	P	X	Remark
BT01-200-125	66	80	514	6-M6*12	40	G1/8	30	10	16	24	M12*1.5	15	13	110	160	60	Spring
BT01-200-24S	66	92	514	6-M6*12	40	G1/8	30	10	16	24	M12*1.5	15	13	135	162	100	Spring
BTO2-200-125	78	92	529	6-M8*15	54	G1/4	40	10	20	26	M16*1.5	15	17	135	176	60	Spring
BT02-200-24S	78	112	529	6-M8*15	54	G1/4	40	10	20	26	M16*1.5	15	17	150	193	100	Spring
BT04-200-125	98	112	551	6-M8*18	64	G3/8	50	10	30	29	M22*2	20	24	150	210	100	Spring
BT04-300-125	98	112	751	6-M8*18	64	G3/8	50	10	30	29	M22*2	20	24	150	210	100	Spring
BT04-200-24S	98	137	551	6-M8*18	64	G3/8	50	10	30	29	M22*2	20	24	180	235	100	Spring
BT04-300-24S	98	137	751	6-M8*18	64	G3/8	50	10	30	29	M22*2	20	24	180	235	100	Spring
BT08-200-12S	120	137	585	6-M10*20	88	G1/2	70	10	45	35	M30*2	25	36	180	260	100	Spring

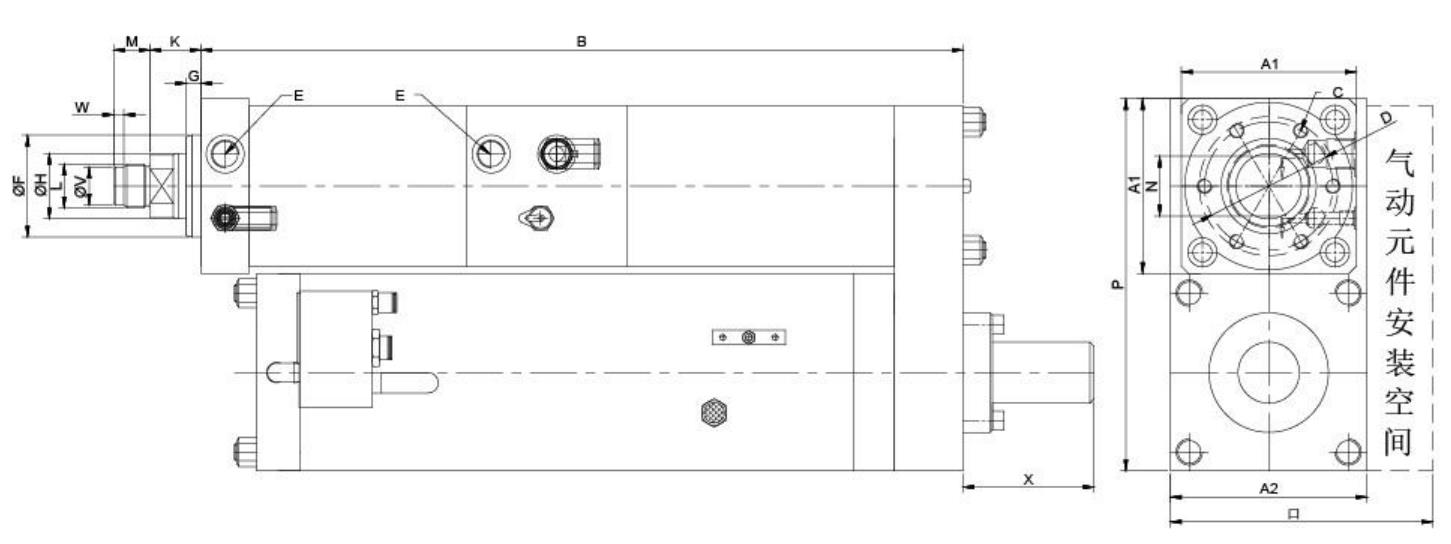

Model	A1	A2	B	C	D	E	F(f7)	G	H	K	L	M	N	O	P	X	Remark
BT08-300-12A	120	137	791	6-M10*20	88	G1/2	70	10	45	35	M30*2	25	36	180	301		Gas spring
BT15-250-12A	145	177	713	6-M16*25	100	G1/2	75	15	50	36	M30*2	25	41	220	366		Gas spring
BT15-250-24A	145	216	713	6-M16*25	100	G1/2	75	15	50	36	M30*2	25	41	270	405		Gas spring
BT20-250-12A	166	216	726	6-M20*30	115	G1/2	85	18	56	52	M39*2	35	46	270	426		Gas spring
BT30-250-12A	190	216	740	6-M20*30	132	G3/4	100	18	63	47	M39*2	35	55	270	452		Gas spring
BT50-200-12A	240	268	771	8-M20*35	150	G3/4	115	25	63	56	M42*2	40	55	330	574		Gas spring
BT75-200-12A	315	332	864	12-M24*45	200	G1	150	20	100	60	M64*2	60	85	380	722		Gas spring
BT100-200-12A	315	332	864	12-M24*45	200	G1	150	20	100	60	M64*2	60	85	380	722		Gas spring
